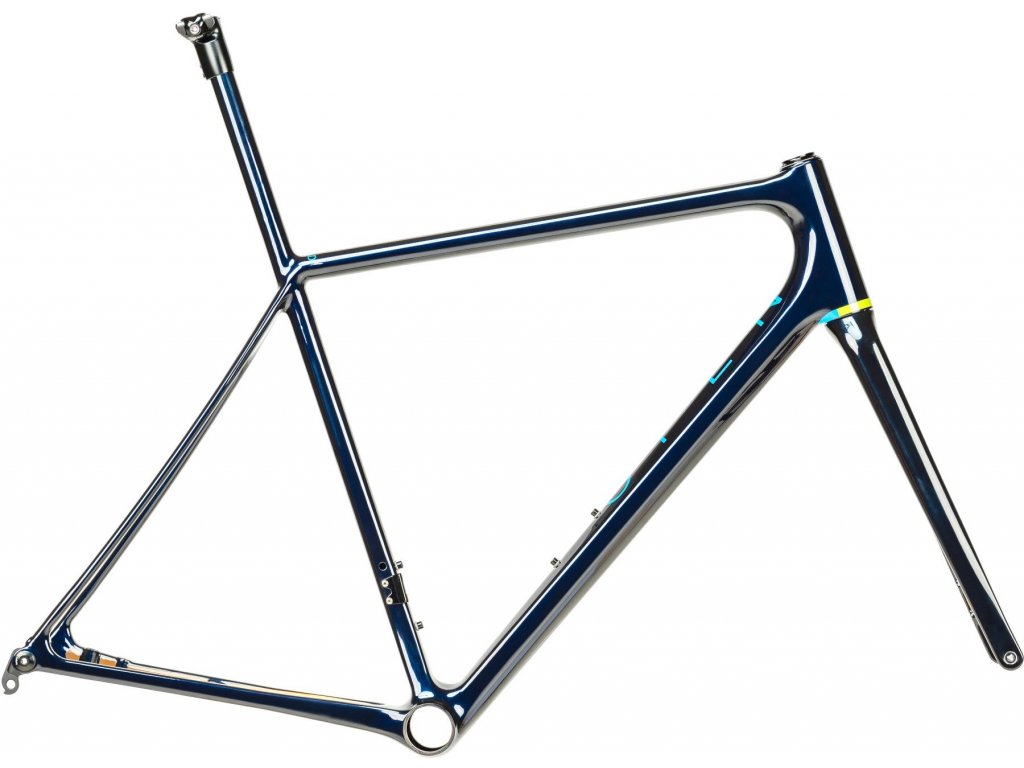

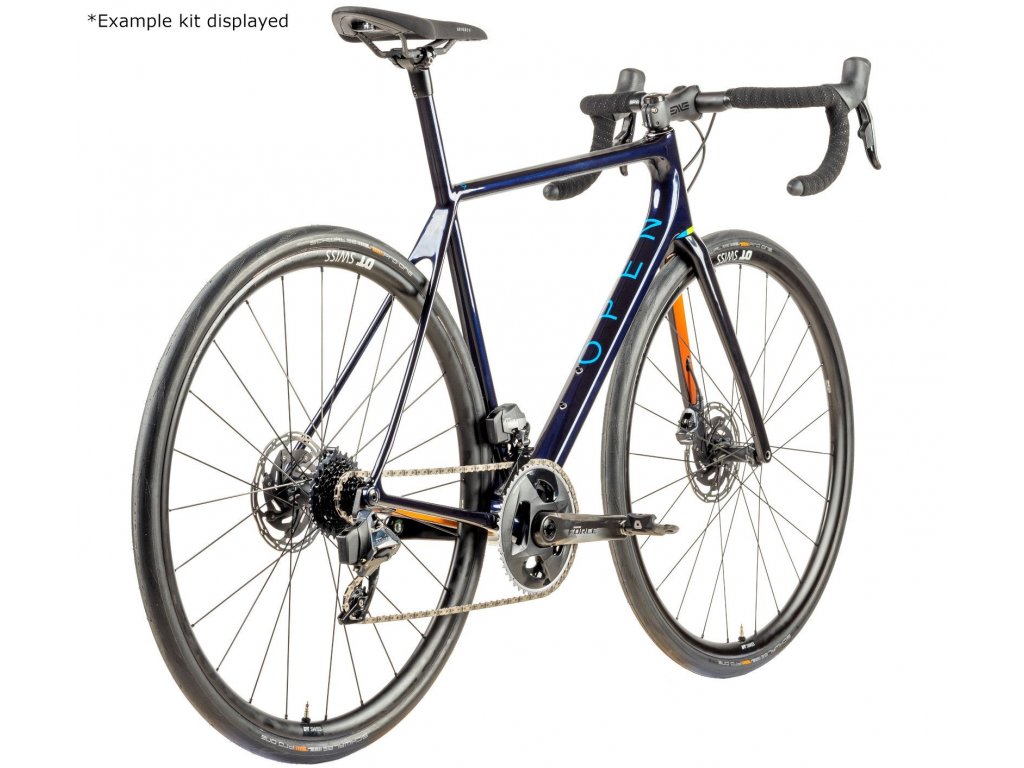

OPEN MIND FRAME WITH FD INCL FORK SIZE L MIDNIGHT BLUE

Detailní popis produktu

POPIS

Tento je velmi odlišný OPEN, přesto odpovídá na stejnou otázku: Na čem chceme jezdit?
Zatímco lidé rádi posouvají své hranice, vyhovuje jim i jednoduchá stavba rámu. V modelu MIN.D. se obojí spojí.
Radost z jízdy na kole začíná ještě před prvním šlápnutím do pedálu, když sbíráte MIN.D., pociťujete jeho lehkost, obdivujete elegantní profily
trubek a vidíte třpytící se půlnoční modř.. Každý gram je založen na minimálním designu Po nasednutí na kolo se ukáže podivná kombinace výkonu a pohodlí. Každý gram materiálu má svou funkci.
Za ní není nic jiného, ​​než nekonečná řada neznámých cest. Toto je MIN.D. (minimální design); existuje, protože je to silniční kolo, na kterém jsme chtěli jezdit.

Rámová specifikace

• Frame-only size M, ±3% - 870g (painted, uncut seatmast, w/o metal parts)

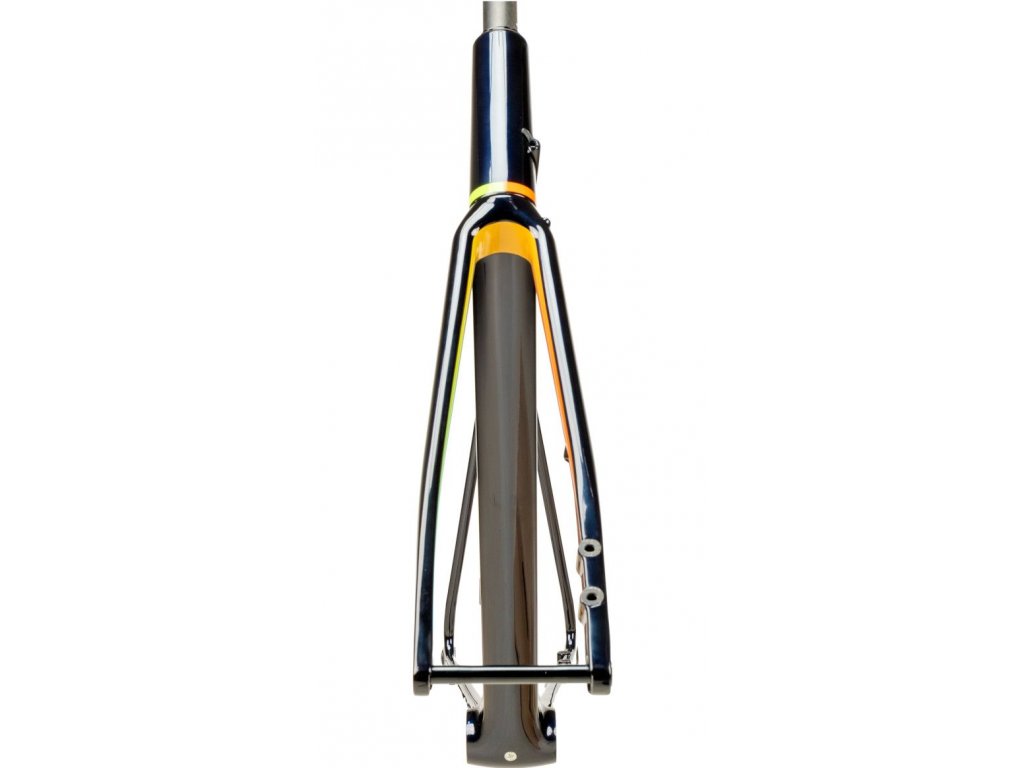

• Fork-only weight, ±3% - 335g (uncut steerer)

• Sizes - S/M/L/XL

• Stock colors - Midnight blue, RTP

• RTP (Ready-to-paint) - A clearcoat is not needed for UV protection but recommended to protect against scratches and wear. Some customers leave the frame bare.

• BB standard - BB386EVO pressfit 86.5x46mm BB shell

• Front derailleur mount - Yes

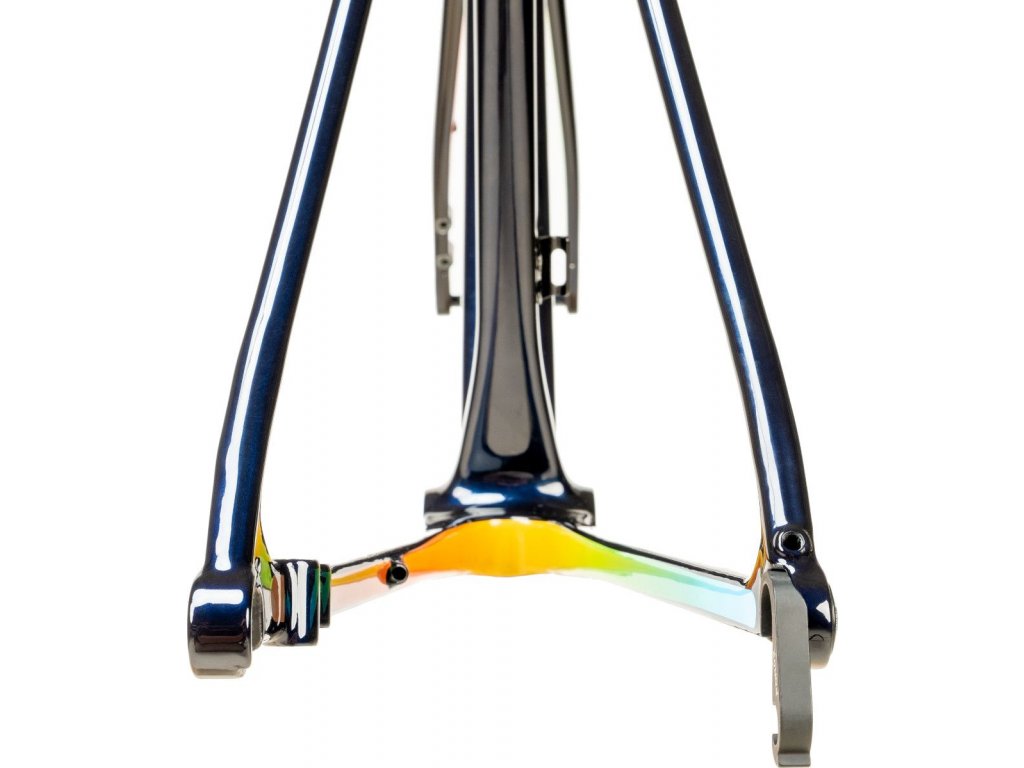

• Rear thru-axle - 142x12mm superlight Carbon-Ti X-12

• Front thru-axle - 100x12mm superlight Carbon-Ti X-12

• Front disc rotor size - 160mm only

• Front brake caliper mount - Smartmount 160 system attaches flatmount caliper, without adaptor, for 160mm rotors

• Front brake bolts SRAM - 2x 37mm "REAR” brake bolts for 30mm “chainstay” (SRAM part# 00.5318.005.008)

• Front brake bolts Shimano - 2x 43.2mm “REAR” brake bolts for 30mm “chainstay” (Shimano part# Y8N208030)

• Front brake bolts Campagnolo - Use Campagnolo SuperRecord “140 mm REAR” disc caliper with 1 bolt “for 20-24 mm rear mount” and 1 bolt “for 25-29mm rear mount” to attach directly to the R-Turn fork

• Rear disc rotor size - 160mm only

• Rear brake caliper mount - Smartmount 160 system attaches flatmount caliper, without adaptor, for 160mm rotors

• Rear brake bolts SRAM - 1x 27mm (SRAM part# 00.5318.005.004), 1x 32mm (SRAM part# 00.5318.005.006)

• Rear brake bolts Shimano - 1x 33.2mm (part# Y8N208010), 1x 38.2mm (part# Y8N208020)

• Rear brake bolts Campagnolo - Use Campagnolo SuperRecord “140 mm REAR” disc caliper with 1 bolt “for 20-24 mm rear mount” and 1 bolt “for 25-29mm rear mount”

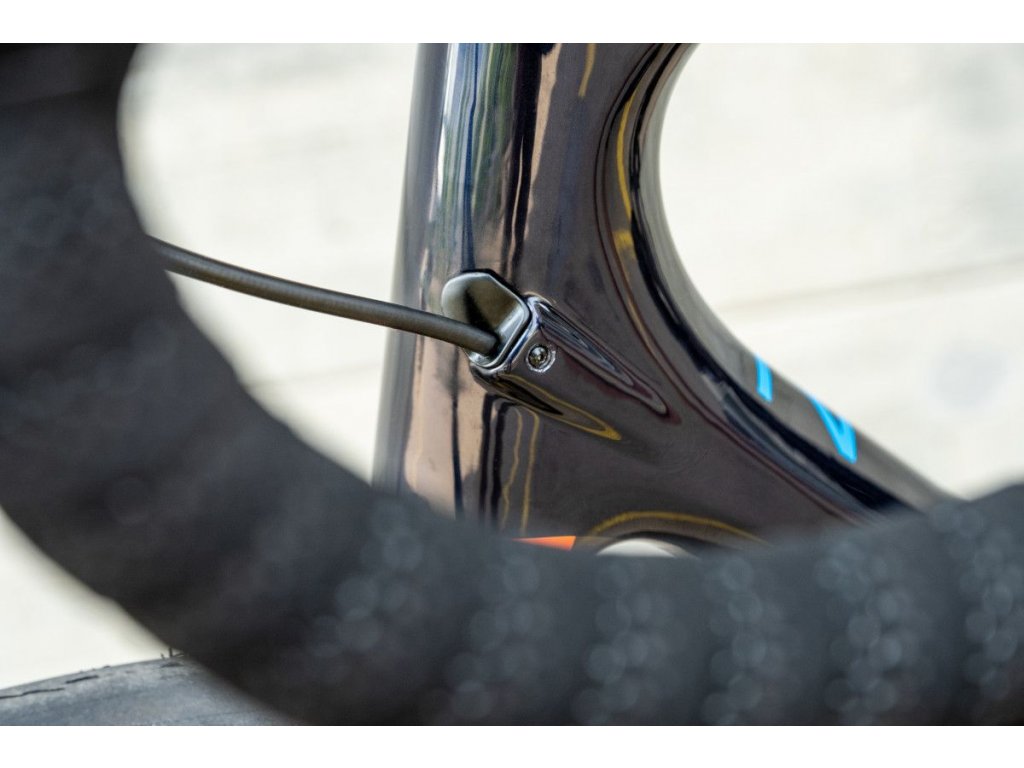

• MultiStop internal system - Di2, eTap, EPS, 2x mechanical (Shimano-only), 1x mechanical (all groups)

• Headset - Cane Creek Integrated IS42/28.6 | OPEN-custom Integrated IS47/38 (complete set part# CAA2011K)

• Seatpost - Integrated mast 25mm BB to saddle

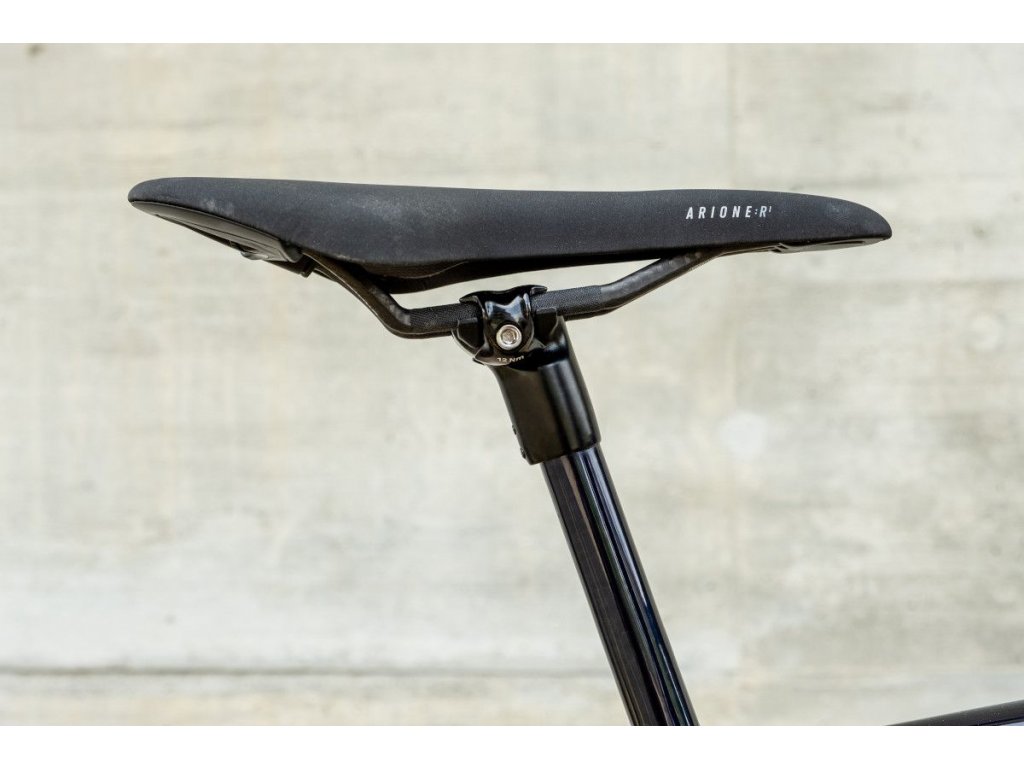

• Seattube top clamp - OPEN-custom saddle top clamp with micro-wedge for 25mm seat mast with 15mm adjustment (MOCT top clamp with 15-35mm adjustment available separately)

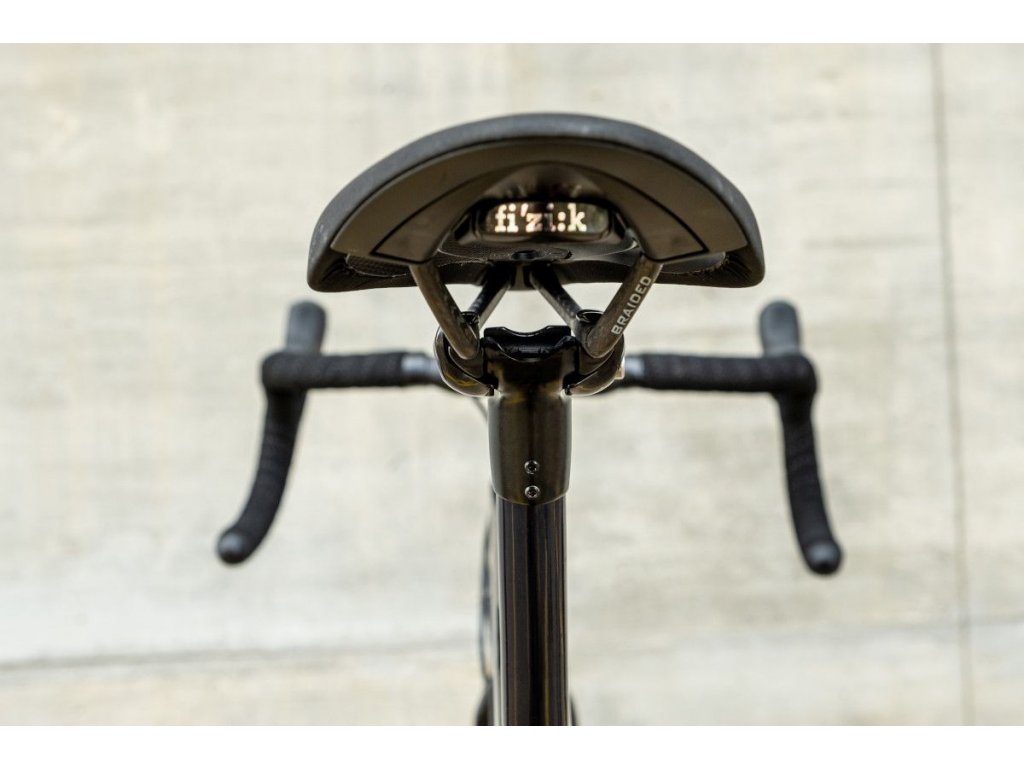

• Rail clamp - Ritchey rail clamp with side plates for round 7x7 and oval 7x9.6mm rails included

• Included with frameset: Headset, Seattube top clamp, Rail clamp, Thru-axles, 2 RD hangers, 2 MultiStops (Di2, eTap), cable exit stop, noise-reduction foam sleeves, bottle cage bolts, manual

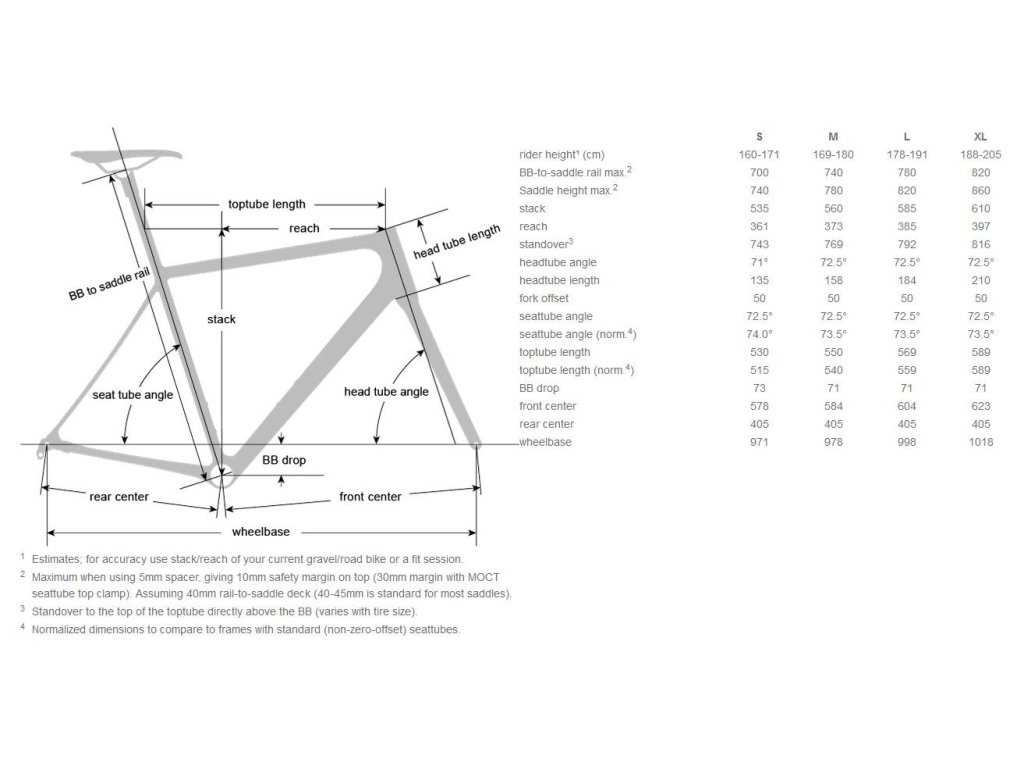

Geometrie

(S, M, L, XL)

• Rider height (cm) - 160-171, 169-180, 178-191, 188-205

• BB-to-saddle rail max. - 700, 740, 780, 820

• Saddle height max. - 740, 780, 820, 860

• Stack - 535, 560, 585, 610

• Reach - 361, 373, 385, 397

• Standover - 743, 769, 792, 816

• Headtube angle - 71°, 72.5°, 72.5°, 72.5°

• Headtube length - 135, 158, 184, 210

• Fork offset - 50, 50, 50, 50

• Seattube angle - 72.5°, 72.5°, 72.5°, 72.5°

• Seattube angle (norm.) - 74.0°, 73.5°, 73.5°, 73.5°

• Toptube length - 530, 550, 569, 589

• Toptube length (norm.) - 515, 540, 559, 589

• BB drop - 73, 71, 71, 71

• Front center - 578, 584, 604, 623

• Rear center - 405, 405, 405, 405

• Wheelbase - 971, 978, 998, 1018
